Product Description

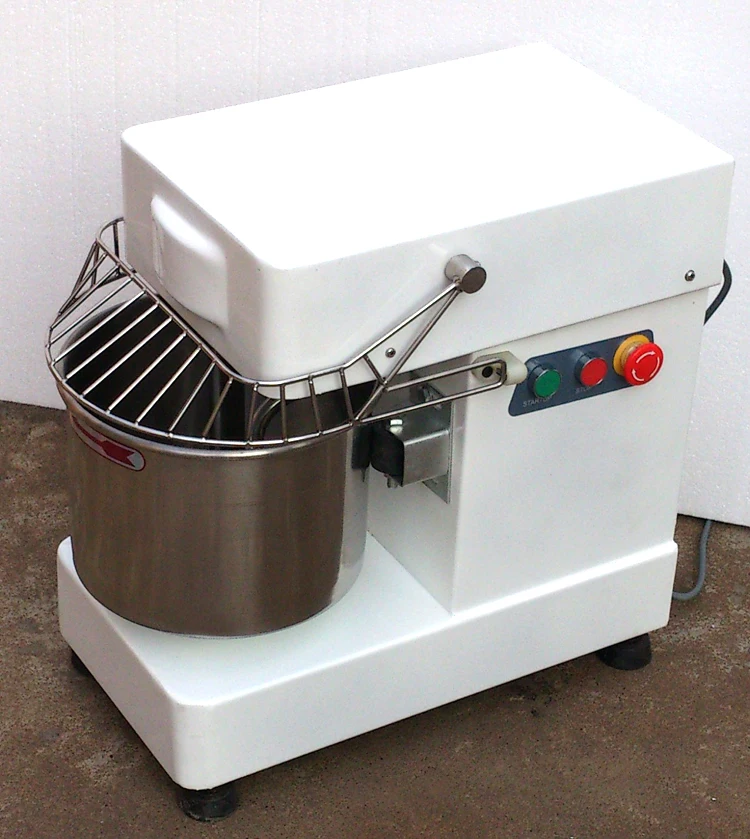

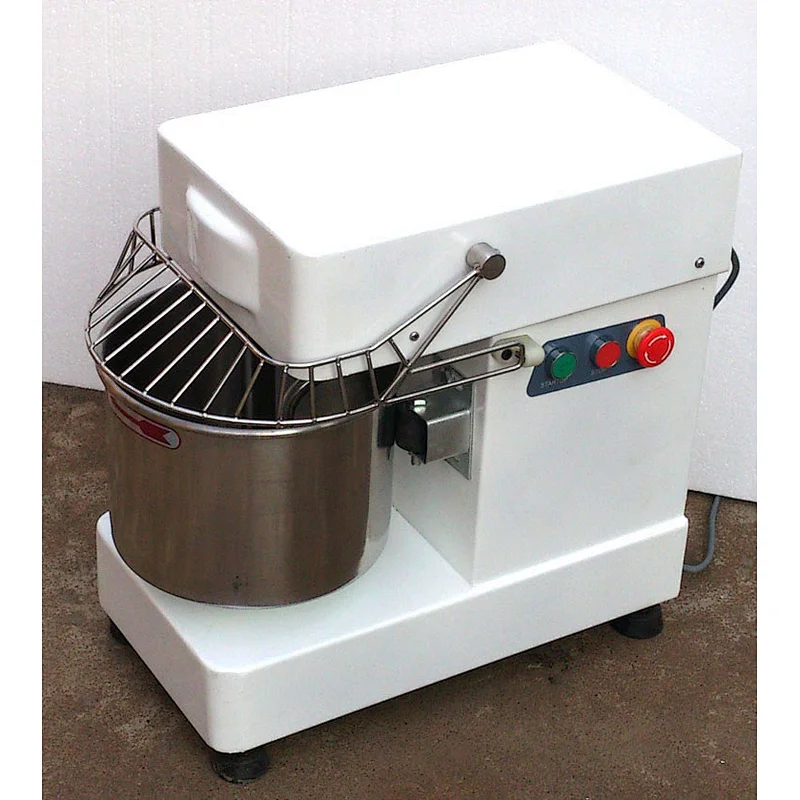

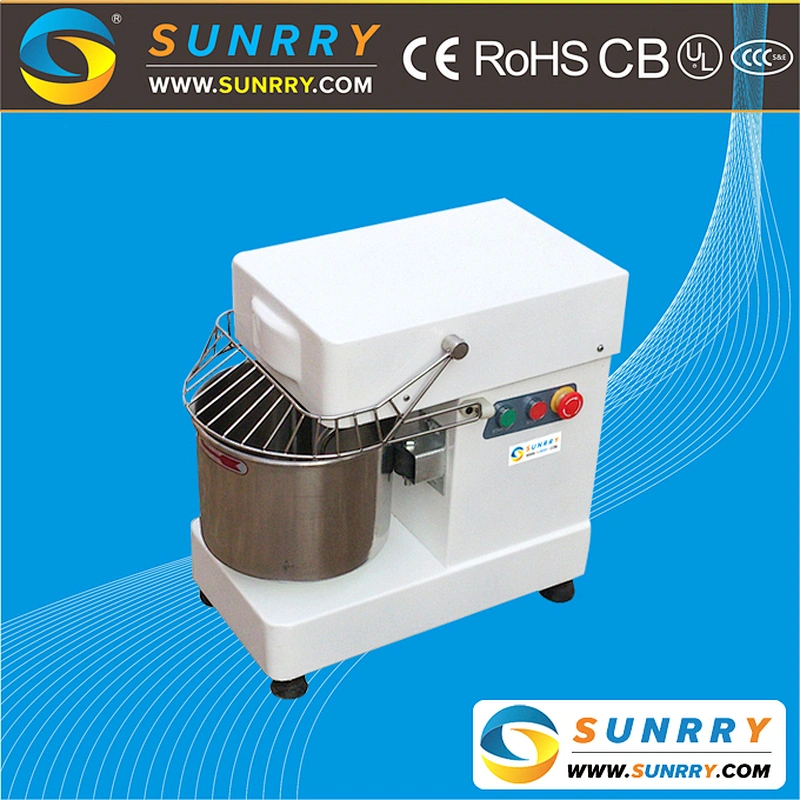

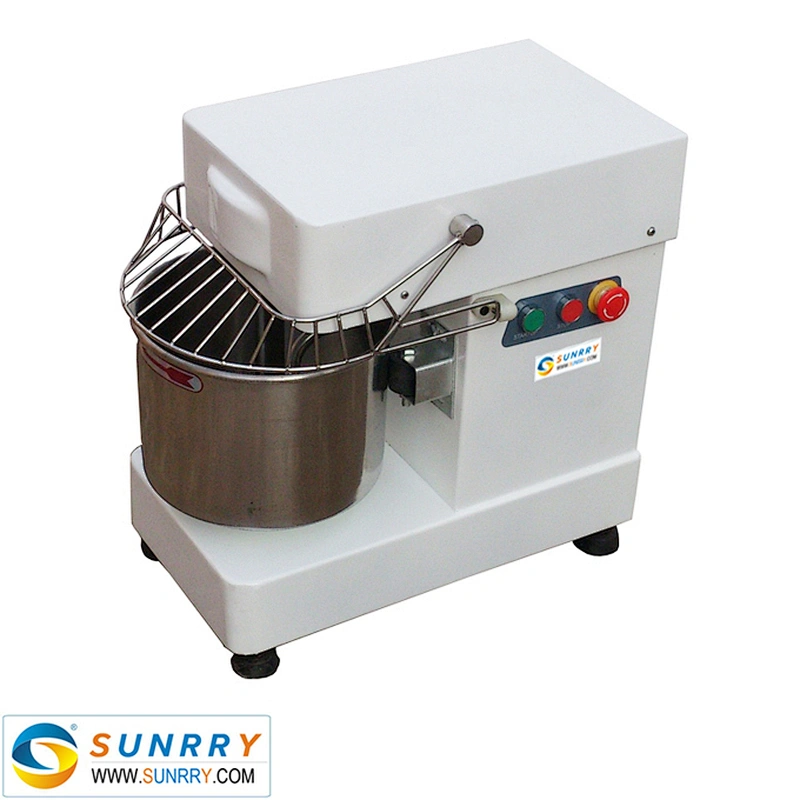

Commercial standard electric belt transmission 10L spiral dough mixer and cake dough mixer
Specification for dough mixer 10l
| Spiral Dough Mixer | |
| Voltage | 220V/50Hz |
| Power | 0.75 KW |
| Capacity | 4KG |
| Mixing Speed | 170RPM |
| Bowl Speed | 17 r/min |
| Material | 304 stainless steel |
| Guard | Stainless-steel cover |
| Weight | 48KG |
| Dimension | 550*340*530 MM |
Features for cake dough mixer
1.Belt transmission .
2.Simple structure.
3.Competive price
Part of The SY-SM spiral dough mixer Technical Parameter
| MODEL | CAPACITY | VOLTAGE | POWER | MAX FLOUR | MIXING SPEED | BOWL SPEED | WEIGHT | SIZE(L*W*H) |
| SY-SM10T | 10 Liter | 220V/50Hz | O.75KW | 4KG | 170RPM | 17RPM | 48KG | 550*340*530MM |
| SY-SM20T | 21 Liter | 220V/50Hz | 1.5KW | 8KG | 112/198RPM | 12/20RPM | 90KG | 730*390*900MM |
| SY-SM30T | 35 Liter | 220V/50Hz | 1.5KW | 12.5KG | 112/198RPM | 12/20RPM | 100KG | 750*435*900MM |
| SY-SM40T | 40 Liter | 220V/50Hz | 3.0KW | 16KG | 112/198RPM | 12/20RPM | 155KG | 840*480*1000MM |
| SY-SM50T | 54 Liter | 220V/50Hz | 3.0KW | 20KG | 112/198RPM | 12/20RPM | 170KG | 840*480*1000MM |
| SY-SM60T | 64 Liter | 220V/50Hz | 3.0KW | 25KG | 100/200RPM | 12/20RPM | 180KG | 840*480*1000MM |
| SY-SM80T | 80 Liter | 380V/50Hz | 2.4KW | 32KG | 100/200RPM | 12RPM | 300KG | 1000*560*1380MM |
| SY-SM100T | 100 Liter | 380V/50Hz | 4.5KW | 40KG | 100/200RPM | 12RPM | 340KG | 1080*650*1380MM |
| SY-SM130T | 130 Liter | 380V/50Hz | 5.5KW | 50KG | 100/200RPM | 12RPM | 370KG | 1160*730*1380MM |
| SY-SM200T | 200 Liter | 380V/50Hz | 7.5KW | 75KG | 100/200RPM | 12RPM | 410KG | 1380*840*1560MM |
| SY-SM260T | 260 Liter | 380V/50Hz | 7.5KW | 100KG | 100/200RPM | 12RPM | 450KG | 1380*840*1560MM |
