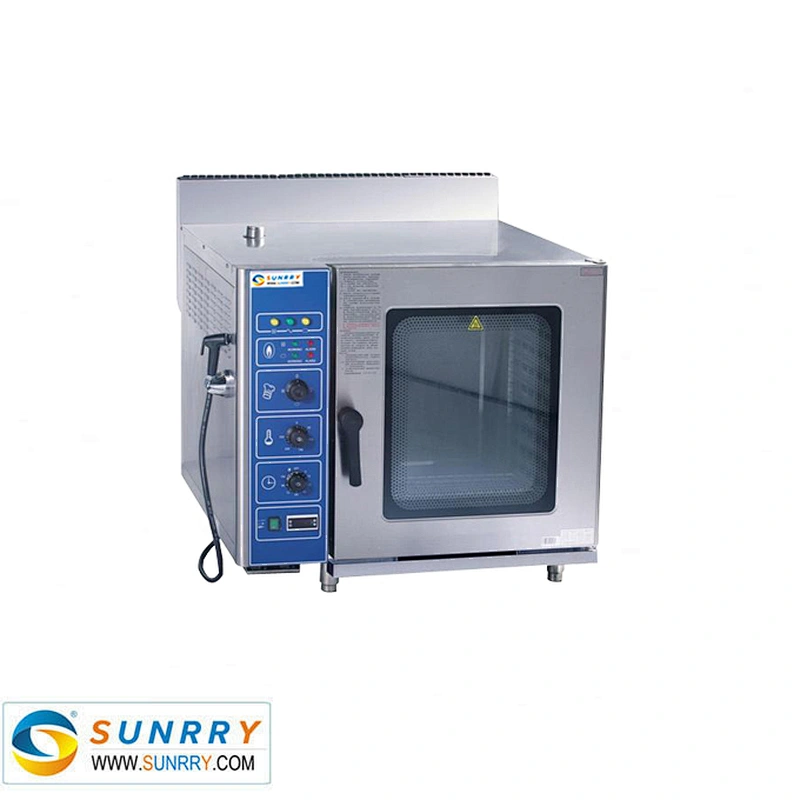

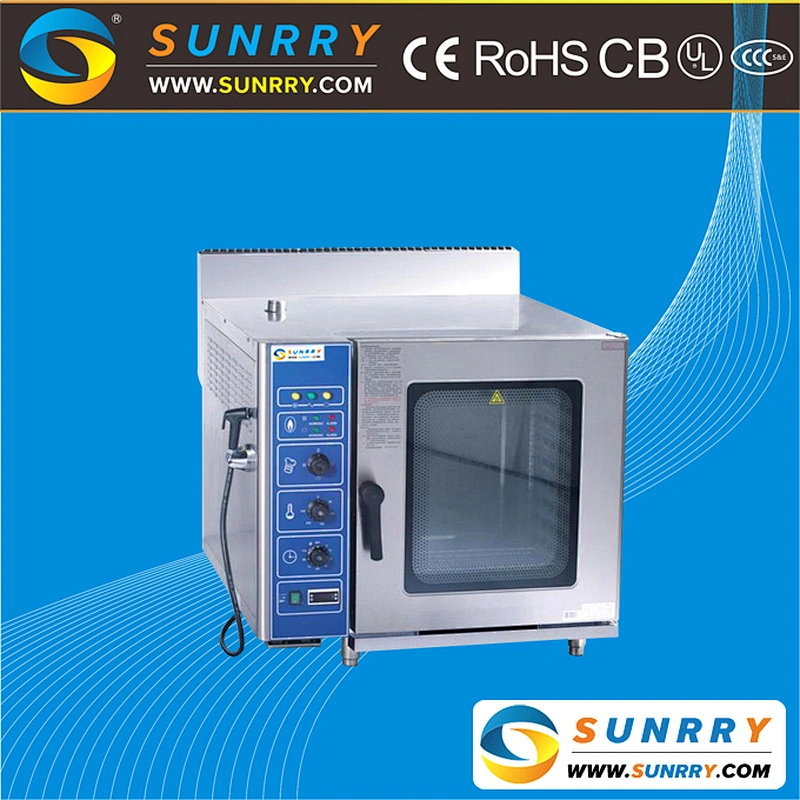

Gas Combi Oven Professional Deck Oven Gas Steam 10 Trays Gas Steam Oven
10-tray Combi Oven | |
Model | SY-CV10C |
Dimension | W1000xD980xH920+130mm |
Capacity | 1/1x1”GN,10pcses |
Bore Size | W540xD380xH660mm |
Height Per Tray | 60mm |
Voltage | 220V/50Hz |
Power | steam(12kw) roast(18kw) |
Gas consumption ( steam ) | LPG:0.87KG/H; NG:1.12M3/H |
Gas consumption ( roast ) | LPG:1.31KG/H; NG:1.68M3/H |
Menu | 25 |
Steam Flow | 15 L/H |
Temperature | 50~250°C |
N.W. | 185 KG |
Water Inlet Size | R 3/4” |
Water Outlet Size | 1 1/4” |
Air Inlet | Φ60 |
Air Exhaust | Φ60 |
Oven Cleaning Mixture Inlet | Φ45 |
Soft Water Inlet | 3/4” |
Washing Squirt Gun Connector | 3/4” |
Features:
◊ The gas combi-steamer adopts the high-efficient burner as the heating source. Its special way of giving off heat can prevent the food stuff from being contamined; it is ignited through the electronic impulse. The gas will be cut off if it cannot be lit, giving a warning signal; it fulfils all cooking programs, such as baking, broiling, cooking and steaming, to make many kinds of dishes.
◊ Stainless steel structure with elegant appearance.
◊ Circular-structured bore,does not hide waste and easy to clean.
◊ High efficient electric heating tube with high heating speed.
◊ Probing needle mode,which is able to probe into and control the inner temperature of the food.
◊ Allocated with boiler:Strong steam generating,easy Chinese cooking.
◊ Allocated with softener:Pure water,provent scales,extend equipment life.
Remark:
The following accessories can be used:
1.Stainless steel grid-shelf (Dimension:536x334mm)
2.Food tray:GN1/1, GN1/2,GN1/3,GN1/4,GN1/6,depth from 20 to 200mm Except GN1/1,other trays can be used with the grid-shelf.User can select the above accessories at will.
SY-CV10C Gas Combi Oven Application
